Installing a Jihostroj controller on 915iS

Yes.😉

I discovered the same problem. You have a choice and options.

You will need to heat and bend a Ring Spanner to the correct angle to install the Lower Left hand Bolt, if you replace the Studs with Bolts!

Kindly note I said Bolt (or you can use Cap Head Bolts). I replaced the Studs with Cap Heads Why? Well if you need to remove the hydraulic controller into the future it would be very difficult with the Studs in place.

With Cap Head Bolts you can still remove the hydraulic unit at any future point in time without the need to heat studs for removal.

Tools. Long Nose pliers. Long Allan Key. If usig a Bolt you will need to heat and bend a Ring Spanner to the correct angle.

Its a slow process but works and may uncomplicate you future. Dont for get the lock tight! 😁 and the gasket! Good luck.

OK, best option for me, use Allen bolts not studs.  Mount with ¼ drive tools, use a long extension.  Clearance problem solved.  They make both a 5MM and a 6MM.  It solves all the mount issue for the mount plate, the governor and also works in all the tight places.

Cheers

1

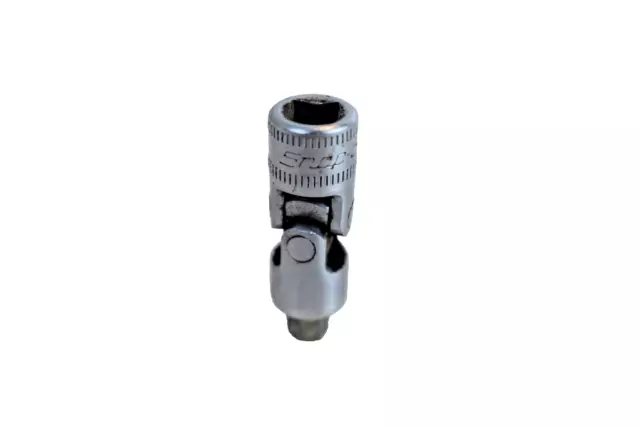

Snap on Tools TUAM6E 6mm Metric Stubby Universal Hex Bit Socket 1/4" Drive USA
